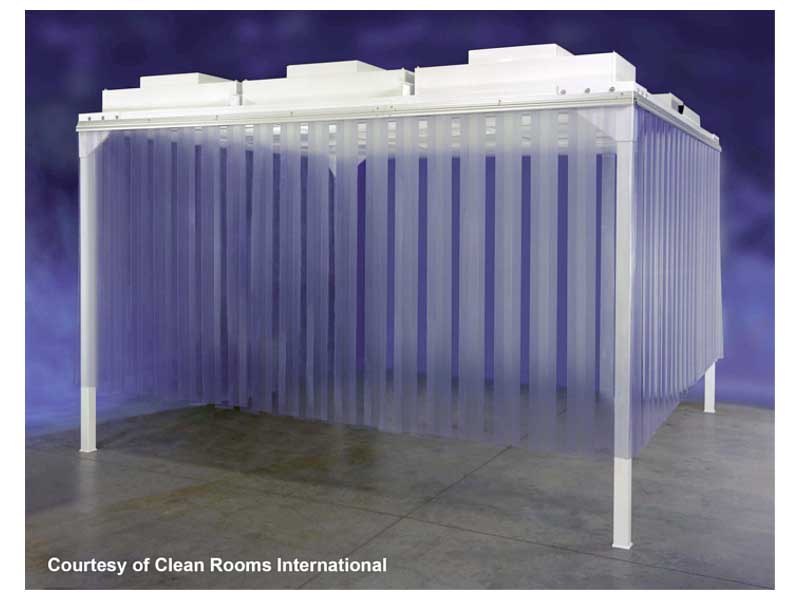

Control a variety of work space environments. The standard and custom-engineered designs are for demanding and unique applications. These are offered in ISO Class 5 through 9, or US Federal Standard 209 Class 100 through 100,000. They are equipped with SAM Fan Filter Units for HEPA filtration, lighting, a 4 foot strip door, and solid curtain wall panels. Frame: Prefabricated white painted steel frame. Leg: At the bottom of each is a standard base plate with four mounting holes for securing to the floor. Ceiling System: Painted support structure, perimeter wall angle and aluminum T-Grid. Curtain Panels: All sides are enclosed with clear vinyl 40 mil curtain panels. Length is pre-engineered for proper air flow relief, appropriate for size and classification. Strip Door: Standard access is via a 4ft strip door consisting of 8” 80 mil clear vinyl strips overlapped 2”. Interior Height: Standard interior height is 8ft. Lighting: Lighting is nominal 2ft X 4ft, 4-lamp airtight cleanroom light fixtures w/energy efficient T8 electronic ballasts. Ceiling Panels: Cleanguard ceiling panels with sealed edges and white vinyl laminate on one side for spaces not occupied by SAM Fan Filter Units or light fixtures. HEPA Filters: SAM 2ft X 4ft Fan Filter Units, 115V manufactured by Clean Rooms International. Benefits & Features Wide variety of customized Flexible SolutionsSeveral options including casters, telescoping legs, a variety of curtain choicesExclusive state-of-the-art SAMlink Control System optionOptional casters allow easy roll from one location to anotherYour requirements will be engineered into a creative design solutionEasy to upgrade when a higher class is neededAdd more SAM Units to achieve a higher class without compromising the structural integrity
Spec Sheet Variations between website images and physical product may occur. These are for visual reference and may not be an exact representation of the product. We strive to provide product materials that best represent the actual product.
For additional information including Current Pricing, Availability & Product Information: Steve Cason, Sales Operation Manager
Direct: (540) 221-6039 | Email: steve@yourcleanroomsupplier.com | Online: RFQ & Samples Request Form In addition to these products, please feel free to browse a variety of supplier catalogs, conveniently located on our Resources Page, to assist in locating the specific products for your needs.
| Options | SKU | Price |
| Size: 12 X 16 X 8; Feature/Style: 16 Panels, 3 Fan Filter Units, 5 Lights; Feature/Style: Class 10,000 (ISO 7) | SW10030 | $0.00 |
| Size: 10 X 12 X 8; Feature/Style: 10 Panels, 2 Fan Filter Units, 3 Lights; Feature/Style: Class 10,000 (ISO 7) | SW10027 | $0.00 |
| Size: 8 X 10 X 8; Feature/Style: 5 Panels, 3 Fan Filter Units, 2 Lights; Feature/Style: Class 1,000 (ISO 6) | SW10007 | $0.00 |
| Size: 12 X12 X 8; Feature/Style: 11 Panels, 3 Fan Filter Units, 4 Lights; Feature/Style: Class 10,000 (ISO 7) | SW10029 | $0.00 |
| Size: 12 X 24 X 8; Feature/Style: 27 Panels, 2 Fan Filter Units, 7 Lights; Feature/Style: Class 100,000 (ISO 8) | SW10048 | $0.00 |
| Size: 12 X 24 X 8; Feature/Style: 24 Panels, 5 Fan Filter Units, 7 Lights; Feature/Style: Class 10,000 (ISO 7) | SW10032 | $0.00 |
| Size: 12 X 24 X 8; Feature/Style: 18 Panels, 11 Fan Filter Units, 7 Lights; Feature/Style: Class 1,000 (ISO 6) | SW10016 | $0.00 |
| Size: 12 X 20 X 8; Feature/Style: 22 Panels, 2 Fan Filter Units, 6 Lights; Feature/Style: Class 100,000 (ISO 8) | SW10047 | $0.00 |
| Size: 12 X 20 X 8; Feature/Style: 20 Panels, 4 Fan Filter Units, 6 Lights; Feature/Style: Class 10,000 (ISO 7) | SW10031 | $0.00 |
| Size: 8 X 10 X 8; Feature/Style: 7 Panels, 1 Fan Filter Units, 2 Lights; Feature/Style: Class 100,000 (ISO 8) | SW10039 | $0.00 |
| Size: 12 X 16 X 8; Feature/Style: 17 Panels, 2 Fan Filter Units, 5 Lights; Feature/Style: Class 100,000 (ISO 8) | SW10046 | $0.00 |
| Size: 8 X 12 X 8; Feature/Style: 5 Panels, 4 Fan Filter Units, 3 Lights; Feature/Style: Class 1,000 (ISO 6) | SW10008 | $0.00 |
| Size: 12 X 16 X 8; Feature/Style: 12 Panels, 7 Fan Filter Units, 5 Lights; Feature/Style: Class 1,000 (ISO 6) | SW10014 | $0.00 |
| Size: 12 X 12 X 8; Feature/Style: 9 Panels, 5 Fan Filter Units, 4 Lights; Feature/Style: Class 1,000 (ISO 6) | SW10013 | $0.00 |
| Size: 12 X 12 X 8; Feature/Style: 13 Panels, 1 Fan Filter Units, 4 Lights; Feature/Style: Class 100,000 (ISO 8) | SW10045 | $0.00 |
|
|
